High Performance Flat Belt

Previous ‹‹ » Next

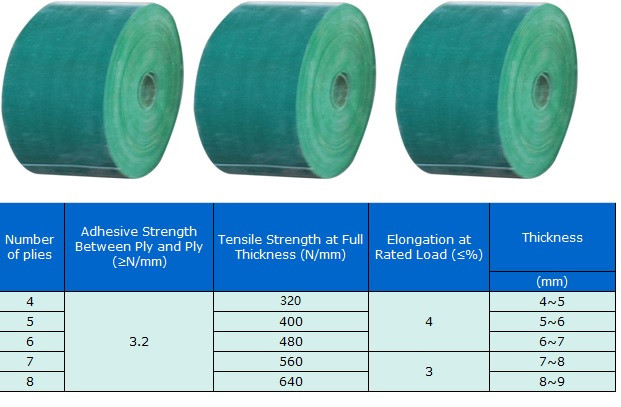

High Performance Flat Belt


Key Features and Benefits:

• Innovative structure design, adopting advanced rubber compound with good adhesion at opposite joint of outer fabric with fillet, delamination will not occur during operation.
• Adopting high quality pure cotton canvass, the duck plies have good enduration and not easily deform.
• With adoption of advanced processing technology and good sulphuration, it features as less elongation.
Applications :
• It is mainly used for Rice Milling Bucket. The green elevator belt is used for many rice milling factories.
Features :
• Well suited to grain handling industries.

Technical Specifications :

Number of plies Adhesive Strength Between Ply & Ply (≥N/mm) Tensile Strength at Full Thickness (N/mm) Elongation at Rated Load (≤%) Thickness (mm)
4 3.2 320 4 4~5
5 400 5~6
6 480 6~7
7 560 3 7~8
8 640 8~9
