Drying Bucket

Previous ‹‹ » Next

Drying Bucket


Material : HDPE/NYLON/UHMWPE
Features :
• Well suited to agricultural applications such as drying of rice, seeds and grains as well as any other products that have to be dried/treated for further processing.
• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations
• Minimum bucket spacing: bucket projection “B” + 25mm.
• For engineering purposes, we recommend using “(Z-Y) + 10%” for usable capacity.
• Mounting holes can be customized on request.

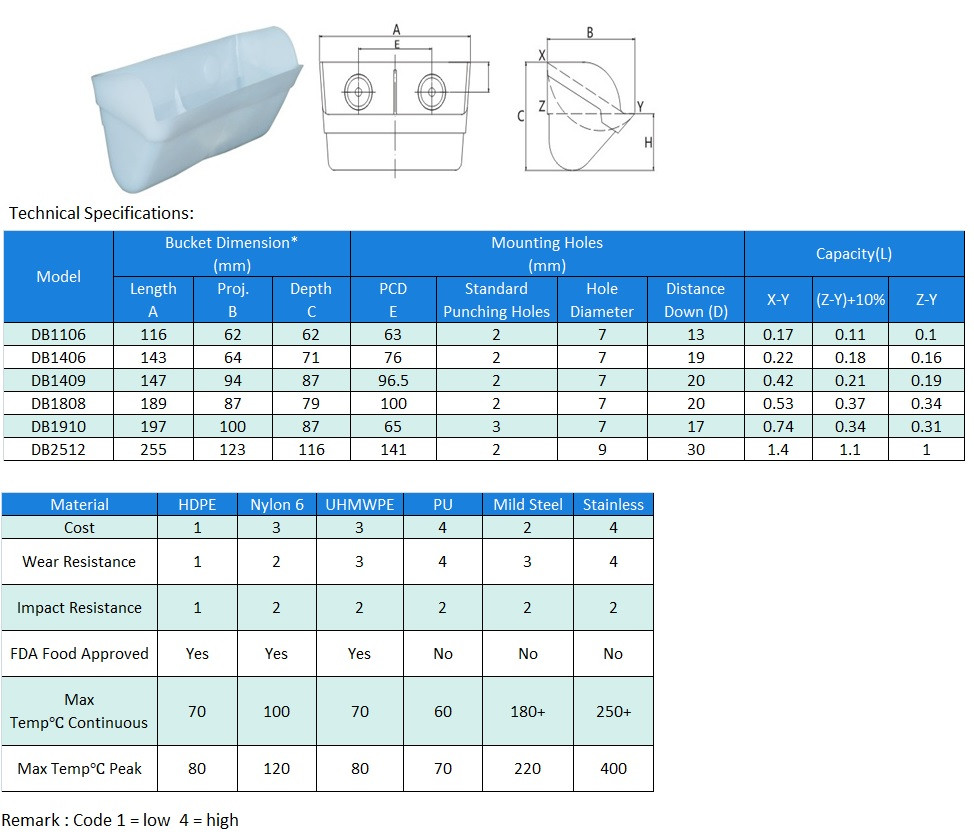

Technical Specifications:

Model Bucket Dimension* (mm) Mounting Holes (mm) Capacity(L)
Length A Proj. B Depth C PCD E Standard Punching Holes Hole Diameter Distance Down (D) X-Y (Z-Y)+10% Z-Y
DB1106 116 62 62 63 2 7 13 0.17 0.11 0.1
DB1406 143 64 71 76 2 7 19 0.22 0.18 0.16
DB1409 147 94 87 96.5 2 7 20 0.42 0.21 0.19
DB1808 189 87 79 100 2 7 20 0.53 0.37 0.34
DB1910 197 100 87 65 3 7 17 0.74 0.34 0.31
DB2512 255 123 116 141 2 9 30 1.4 1.1 1

• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Less weight, prolong service life of buckets and belts, reduce elevator consumption.
• A direct replacement for many other international brands.
• Unique elevator bucket design with multiple patents.
• Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material HDPE Nylon 6 UHMWPE PU Mild Steel Stainless
Cost 1 3 3 4 2 4
Wear Resistance 1 2 3 4 3 4
Impact Resistance 1 2 2 2 2 2
FDA Food Approved Yes Yes Yes No No No
Max Temp튠Continuous 70 100 70 60 180+ 250+
Max Temp튠Peak 80 120 80 70 220 400


Remark : Code 1 = low  4 = high

• HDPE : Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
• Nylon : High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
• UHMWPE : Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking,
now water absorption, light weight properties.Higher cost performance products.
• PU : Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
• Mild Steel : General purpose, long life, well suited to agricultural and industrial products.
• Stainless Steel : Food grade, corrosive resistance, suitable for food and high temperature applications.
