Inductive Bucket

Previous ‹‹ » Next

Inductive Bucket



Material : PP/HDPE/NYLON/UHMWPE
Features :
• Specially designed for chain conveyors with horizontal product transmission.
• Commonly used where there is a high demand for low damage to products where conventional elevator will not work or where there will be dificulties with loading and discharge of products.
• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations
• Dimension “G” is designed by referring to the conveyor chain pitch in the chain conveyors.
• Consult our engineer for the installation of LL buckets as various dimensions and figures are needed to be considered.

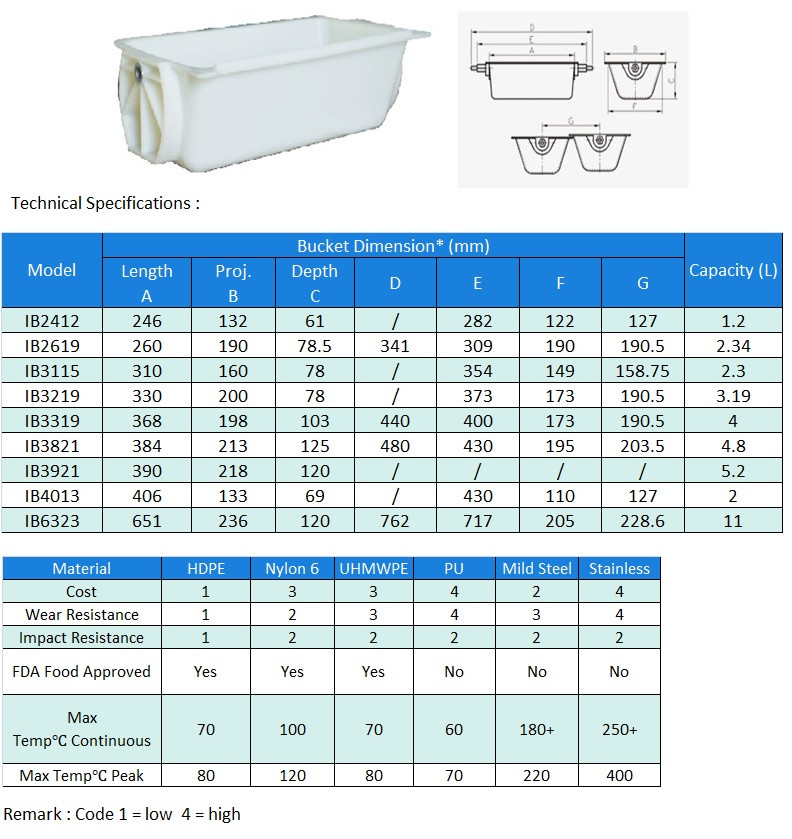

Technical Specifications :

Model Bucket Dimension* (mm) Capacity (L)
Length A Proj. B Depth C D E F G
IB2412 246 132 61 / 282 122 127 1.2
IB2619 260 190 78.5 341 309 190 190.5 2.34
IB3115 310 160 78 / 354 149 158.75 2.3
IB3219 330 200 78 / 373 173 190.5 3.19
IB3319 368 198 103 440 400 173 190.5 4
IB3821 384 213 125 480 430 195 203.5 4.8
IB3921 390 218 120 / / / / 5.2
IB4013 406 133 69 / 430 110 127 2
IB6323 651 236 120 762 717 205 228.6 11

• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Less weight, prolong service life of buckets and belts, reduce elevator consumption.
• A direct replacement for many other international brands.
• Unique elevator bucket design with multiple patents.
• Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material HDPE Nylon 6 UHMWPE PU Mild Steel Stainless
Cost 1 3 3 4 2 4
Wear Resistance 1 2 3 4 3 4
Impact Resistance 1 2 2 2 2 2
FDA Food Approved Yes Yes Yes No No No
Max Temp튠Continuous 70 100 70 60 180+ 250+
Max Temp튠Peak 80 120 80 70 220 400

Remark : Code 1 = low  4 = high

• HDPE : Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
• Nylon : High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
• UHMWPE : Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking,
now water absorption, light weight properties.Higher cost performance products.
• PU : Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
• Mild Steel : General purpose, long life, well suited to agricultural and industrial products.
• Stainless Steel : Food grade, corrosive resistance, suitable for food and high temperature applications.
