Industrial Elevator Bucket

Previous ‹‹ » Next

Industrial Elevator Bucket



Material : HDPE/NYLON/UHMWPE/PU
Features :
• Optimum industrial style elevator bucket with a heavy reinforced lip and corners and a thickened back wall for mounting strength.
• Well suited to conveying of ore, sand, gravel, coal, fertilizer, clay, salt, limestone and cements or any product.
• Weight reduction of up to 80% compared to traditional cast iron elevator buckets.
• Using less energy due to lighter material being used.
• Up to 25% more capacity than cast iron elevator buckets.
• Extended bucket and belt life, less maintenance, less elevator downtime.
• Cleaner discharge, reduced build-up in the bottom of the buckets.
• Non corrosive, non sparking, heat resistant, impact and abrasion resistant.
Using Recommendations
• Recommended minimum bucket spacing: bucket projection 'B' × 2.
• Mounting holes can be customized on request.

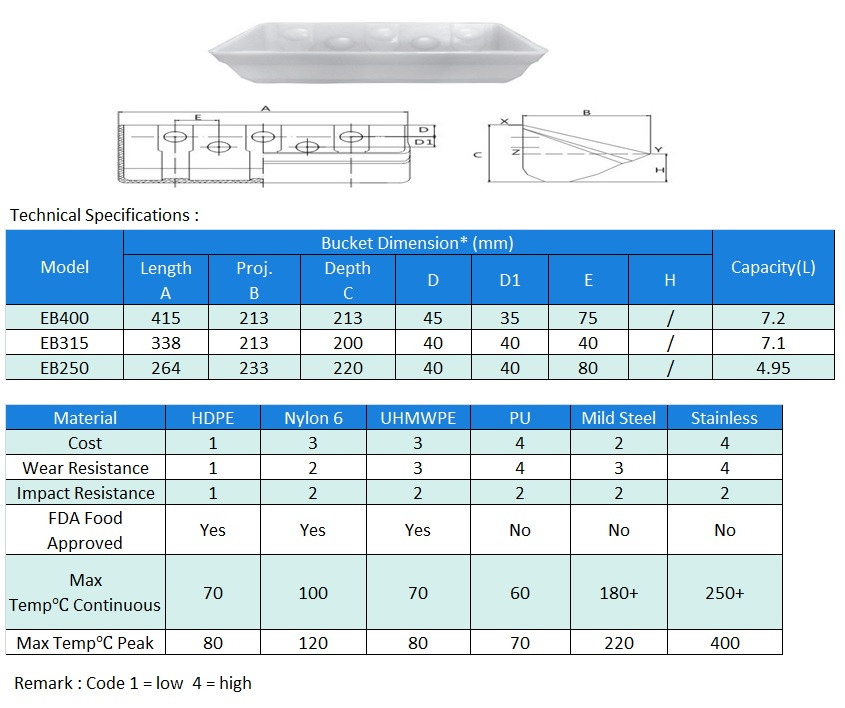

Technical Specifications :

Model Bucket Dimension* (mm) Capacity(L)
Length A Proj. B Depth C D D1 E H
EB400 415 213 213 45 35 75 / 7.2
EB315 338 213 200 40 40 40 / 7.1
EB250 264 233 220 40 40 80 / 4.95

• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Less weight, prolong service life of buckets and belts, reduce elevator consumption.
• A direct replacement for many other international brands.
• Unique elevator bucket design with multiple patents.
• Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material HDPE Nylon 6 UHMWPE PU Mild Steel Stainless
Cost 1 3 3 4 2 4
Wear Resistance 1 2 3 4 3 4
Impact Resistance 1 2 2 2 2 2
FDA Food Approved Yes Yes Yes No No No
Max Temp튠Continuous 70 100 70 60 180+ 250+
Max Temp튠Peak 80 120 80 70 220 400

Remark : Code 1 = low  4 = high

• HDPE : Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
• Nylon : High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
• UHMWPE : Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved),
 Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
• PU : Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
• Mild Steel : General purpose, long life, well suited to agricultural and industrial products.
• Stainless Steel : Food grade, corrosive resistance, suitable for food and high temperature applications.
