No Bottom Bucket

Previous ‹‹ » Next

No Bottom Bucket


Material : HDPE/NYLON/UHMWPE
Features :
• Bottomless elevator Buckets for agricultural use.
• An assembly of several bottomless elevator buckets and one bucket with bottom is installed at a close spacing on the belt. This will allow materials to be conveyed continuously allowing larger capacity.
 Capacity will increase 1.5~2 times by using bottomless elevator buckets. Bottomless elevator buckets can be used at higher discharge speed.
• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations:
• Minimum bucket spacing: Buckets spacing in one group= “C” +1mm; Bucket spacing between the groups= Bucket Projection“B” Bucket Depth “C” +25mm.
• For engineering purposes, we recommend using “L” for usable capacity.
• Mounting holes can be customized on request.

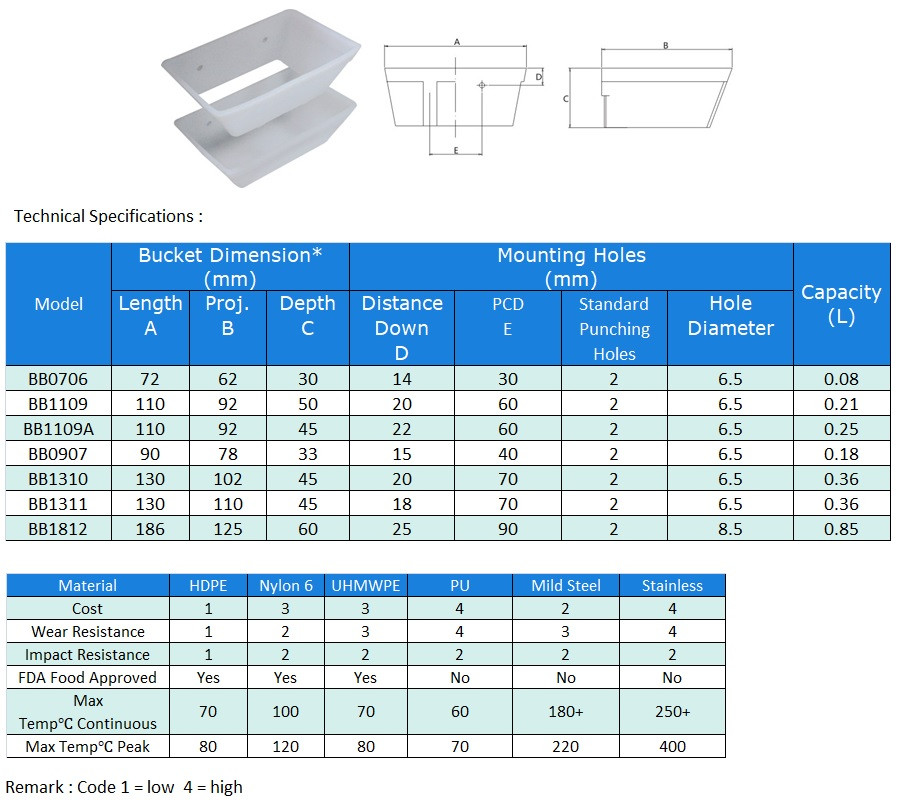

Technical Specifications :

Model Bucket Dimension* (mm) Mounting Holes (mm) Capacity (L)
Length A Proj. B Depth C Distance Down D PCD E Standard Punching Holes Hole Diameter
BB0706 72 62 30 14 30 2 6.5 0.08
BB1109 110 92 50 20 60 2 6.5 0.21
BB1109A 110 92 45 22 60 2 6.5 0.25
BB0907 90 78 33 15 40 2 6.5 0.18
BB1310 130 102 45 20 70 2 6.5 0.36
BB1311 130 110 45 18 70 2 6.5 0.36
BB1812 186 125 60 25 90 2 8.5 0.85

• High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
• Less weight, prolong service life of buckets and belts, reduce elevator consumption.
• A direct replacement for many other international brands.
• Unique elevator bucket design with multiple patents.
• Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material HDPE Nylon 6 UHMWPE PU Mild Steel Stainless
Cost 1 3 3 4 2 4
Wear Resistance 1 2 3 4 3 4
Impact Resistance 1 2 2 2 2 2
FDA Food Approved Yes Yes Yes No No No
Max Temp튠Continuous 70 100 70 60 180+ 250+
Max Temp튠Peak 80 120 80 70 220 400

Remark : Code 1 = low  4 = high

• HDPE : Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
• Nylon : High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
• UHMWPE : Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
• PU : Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
• Mild Steel : General purpose, long life, well suited to agricultural and industrial products.
• Stainless Steel : Food grade, corrosive resistance, suitable for food and high temperature applications.
